Export Germany Dairy Cow Dung Solid Liquid Separator

Export Germany Dairy Cow Dung Solid Liquid  Separator

Model No.︰ECOW640-1

Brand Name︰ECO

Country of Origin︰China

Unit Price︰US $ 10000 / pc

Minimum Order︰1 pc

Inquire Now

Product Description

Product model

Model ECOW640-1
Total power(KW) 8.5
Voltage (V, HZ) 380
Length(mm) 3800
Width(mm) 2000
Height(mm) 1900
Weight(kg) 700
Inlet diameter(mm) 76
Waste water outlet diameter after separation (mm) 108/160
Processing capacity (liquid  (solids content <50%), m3/h) 20-30

Remarks:
There is a difference of 2-6 cubic meters in the processing capacity of the solid material according to the viscosity and dryness of the material.

Micro filtration solid-liquid separator


Product introduction

The micro filtration type solid-liquid separator is designed for treating the materials of low concentration and low slag-containing that can not be handled by the traditional solid-liquid separators and also for improving the processing efficiency.

Working principle

Sewage is pumped to the main machine by a conveying pump, first through a micro filtration processor (optionally with a high-density screen), and the effluent enters a reservoir or a sewage treatment system. The solids enter the screw extruder through the screw pushing device, and once filtered through the screw extruder again, the dry material can be directly bagged. If the spiral extrusion water has a high solid content, it will return to the original sewage tank.
Product model



Payment Terms︰ TT

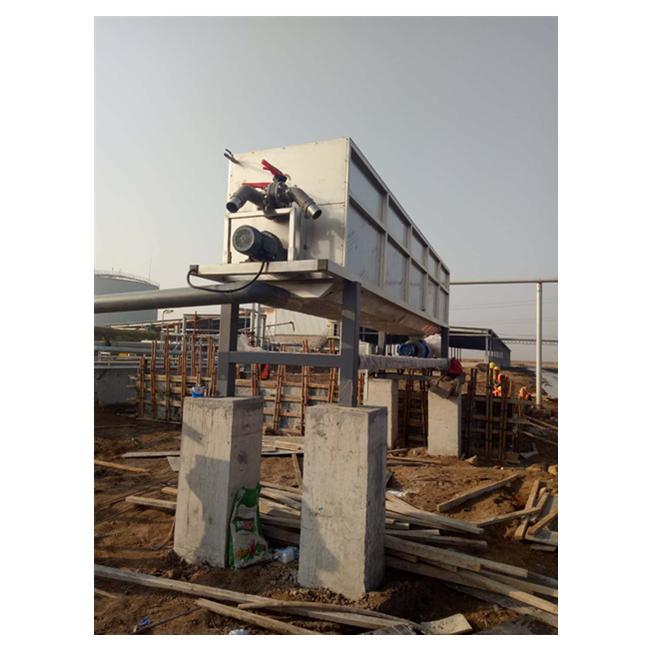

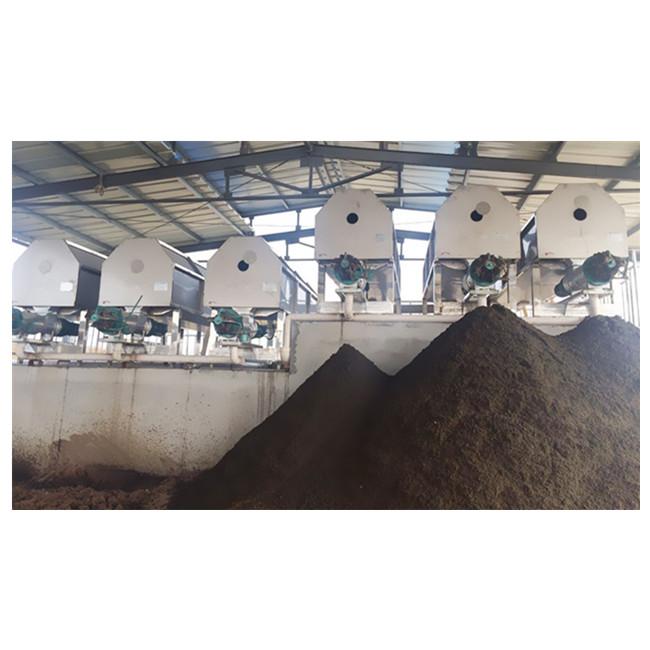

Product Image
